Accessories

Power Supplies

Our range of compact, premium 12 V DC Traco Power supplies is selected specifically to complement building automation applications. Designed with a low-profile case, these units integrate seamlessly into standard wall-mounted control panels and feature highly efficient DIN-rail mounting for effortless installation.

They deliver exceptionally reliable power with built-in short circuit and overload protection alongside low standby energy consumption. The range features robust plastic enclosures and clear DC OK status indicators, ensuring long-term operational peace of mind for your Commander and Zip installs.

Specification

Dimensions	72 (max) x 89.5 x 59.5 mm
Net weight	0.22 kg (max)
Mounting	DIN‑rail mounting
Input voltage	100-240 V AC
Output voltage	12 V DC

Ordering information

MISC/PSU/2A	2 A, 12 V DC regulated power supply, DIN-rail mounted
MISC/PSU/4A	4 A, 12 V DC regulated power supply, DIN-rail mounted
MISC/PSU/6A	6 A, 12 V DC regulated power supply, DIN-rail mounted

Product documentation

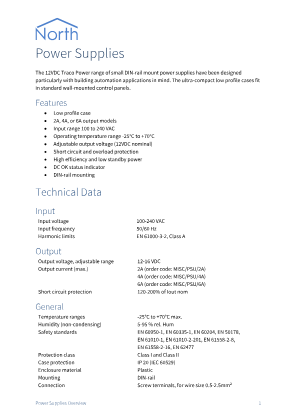

Power supplies overview

North power supply technical data

Power supplies overview (PDF, 2 pages).

DIN-rail mounting kit for Commander

Designed to simplify control panel installation, our optional DIN-rail mounting kit allows a Commander to be securely fitted to standard DIN-rails. The kit includes a pair of robust, zinc-plated steel mounting clips alongside all necessary fixing bolts.

Installation is straightforward: simply attach the two clips to the rear of the Commander enclosure using the hardware provided, ensuring a firm, reliable fit that maintains its profile shape for a secure snap-on finish.

Specification

Dimensions	14 x 15 x 8 mm
Net weight	0.02 kg
Mounting	35 mm DIN‑rail

Ordering information

MISC/DINKIT	DIN-rail mounting kit for Commander

RS232-RS485 Serial Converter

Manufactured by North, our RS232-RS485 Serial Converter seamlessly bridges standard RS232 signals and RS485 data networks. This module allows devices equipped with an RS232 port, such as ObSys and Commander, to interface effortlessly with third-party RS485 equipment and systems, such as Modbus.

Ideal for in-panel mounting alongside other North hardware, the module features a 0.5 m flying lead with a DB9 connector for the RS232 connection, alongside an isolated 2-way screw terminal for the RS485 bus.

Built-in isolation on the RS485 port protects your vital control equipment from ground loops and destructive voltage spikes. Communication settings are highly adaptable and simple to configure via an onboard 4-way DIP switch, which supports selectable baud rates up to 38400 baud and multiple data bit formats.

Specification

Dimensions	45 x 76 x 34 mm
Net weight	0.09 kg
Mounting	DIN‑rail mounting
Input voltage	12-24 V AC/DC
Power method	External power supply (not provided) North recommends a 0.5 VA regulated DC supply (for example 12 V DC providing 40 mA)

Ordering information

CONV/232/485	RS232 to RS485 serial convertor, DIN-rail mounted

Product documentation

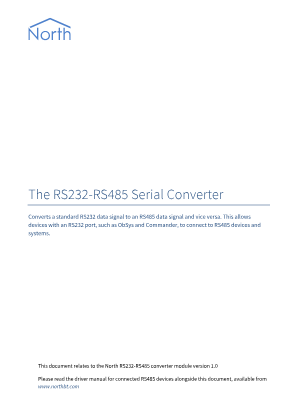

RS232-RS485 Converter Manual

Preview thumbnail of the first page of the RS232-RS485 Converter PDF document showing its main title and layout.

Converts a standard RS232 data signal to an RS485 data signal and vice versa. This allows devices with an RS232 port, such as ObSys and Commander, to connect to RS485 devices and systems.

RS232-RS485 Converter Manual (PDF, 5 pages).
